TSB-86

TSB-86

Available in: APAC | EMEA | Americas

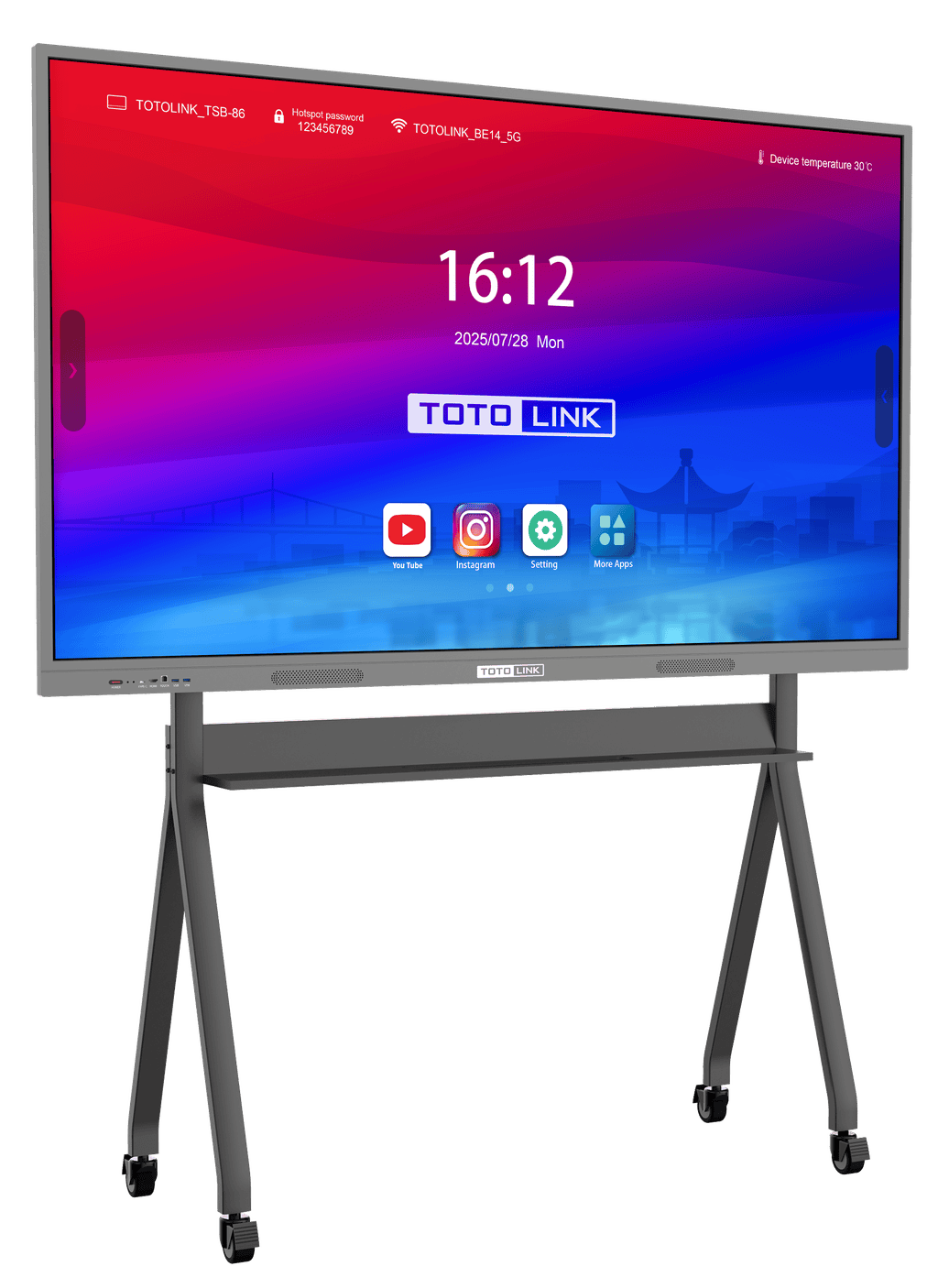

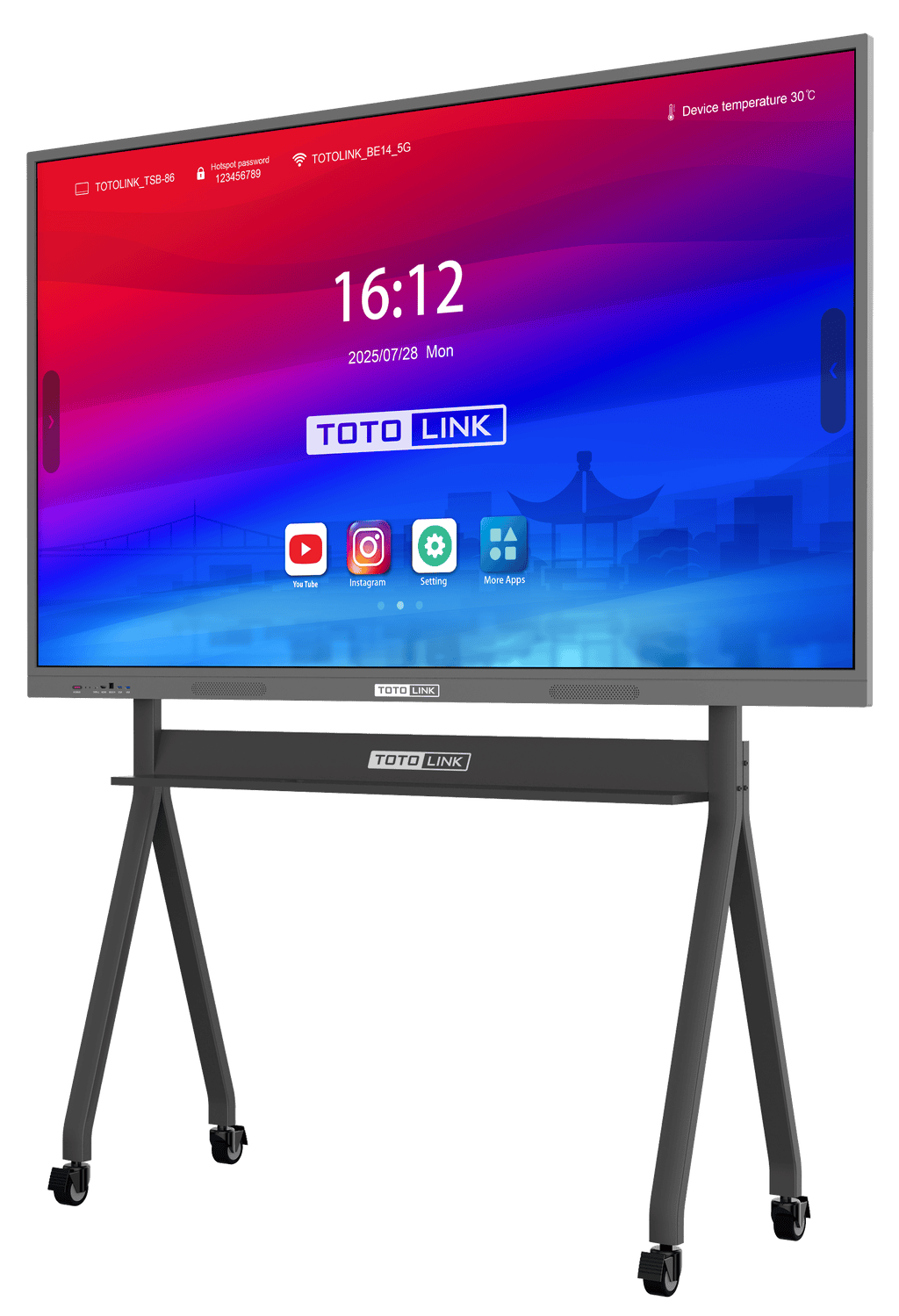

TSB-86 is an 86-inch high-definition display, multi-touch, and multimedia functional interactive smart board. It can be mounted on a wall or placed on a mobile stand, making it suitable for meeting rooms and classrooms of all sizes. It helps users easily share information, discuss collaboration, video and conference calls, and more.










Features

  • Supports full touch control for channel switching, touch menus, touch menu operations, touch volume adjustment, and touch brightness adjustment.
  • Supports one-key power-saving mode.
  • Supports independent listening mode (i.e., the screen remains off while audio and video playback is normal during all-in-one operation).

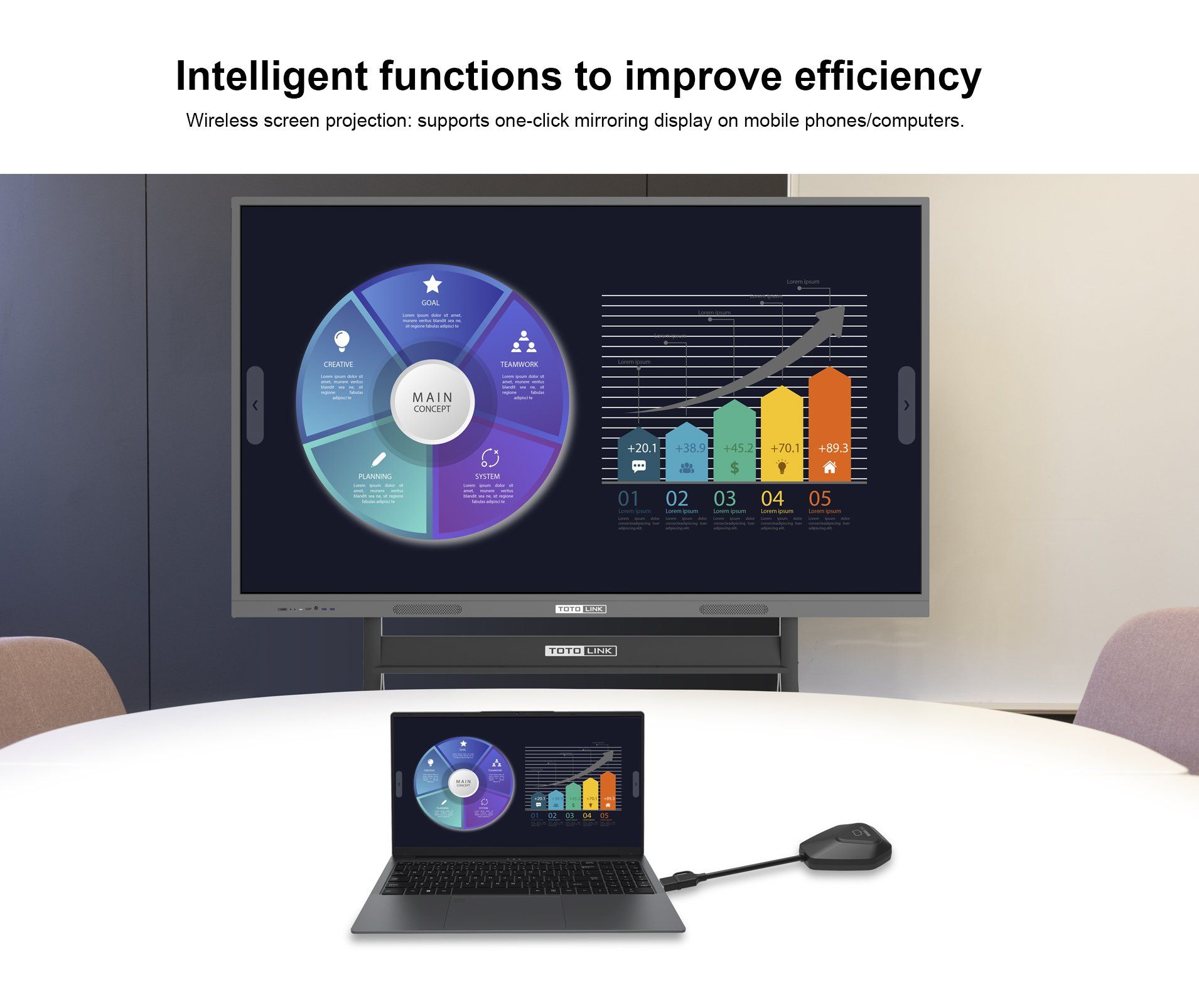

  • Supports wireless screen mirroring from mobile phones.
  • Supports one-key screen recording.
  • Supports one-key power-off via touch menu.
  • Supports connecting to a computer via the front USB 3.0 port.
  • Supports external devices using the built-in touch box function.
  • Supports network following function.
  • Supports importing signal sources, videos, browsers, file managers, images, PPTs, etc., into the whiteboard.

Interactive F unctional Parameters

SpecificationDetails
CPUQuad-core A76 + Quad-core A55 CPU
GPUMali-G610 MC4 GP
RAM/ROM8GByte/   128GByte
WirelessWi-Fi   6（2.4GHz   +5GHz）+ Bluetooth
Horn specifications20W/8 ohms x 2 speakers
System   versionAndroid   15

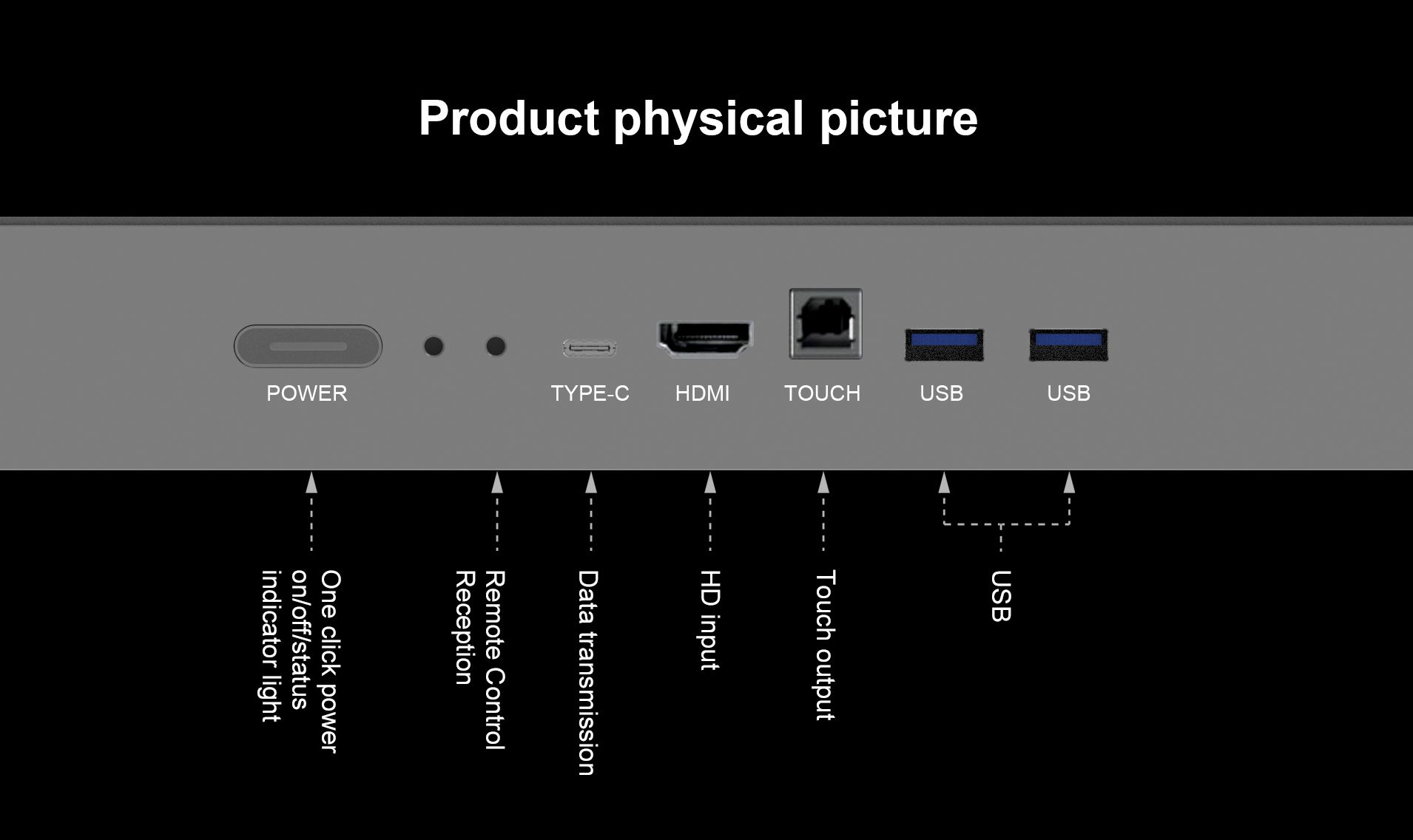

Front   terminal inputFront   interface: USB 3.0* 2 (full channel) Type-c*1、HDM in*1、 Touch*1.
Front one button:power on/off .

Display Parameters

SpecificationDetails

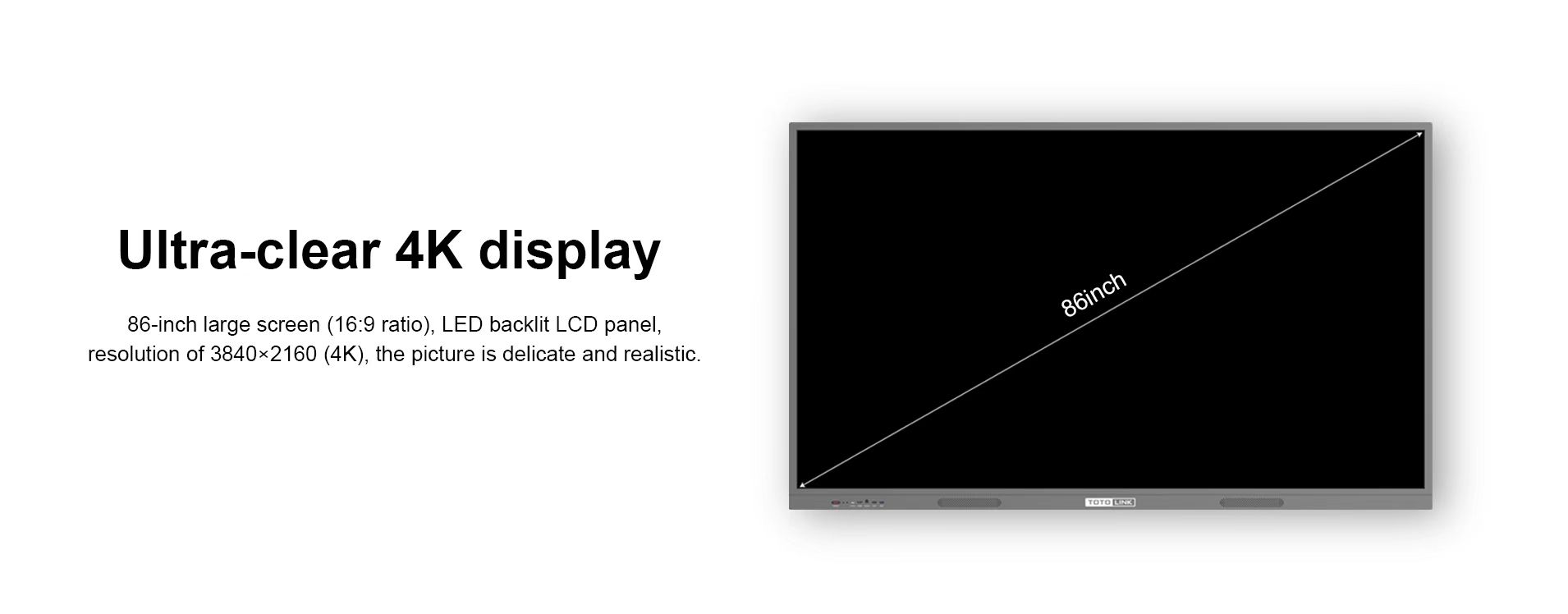

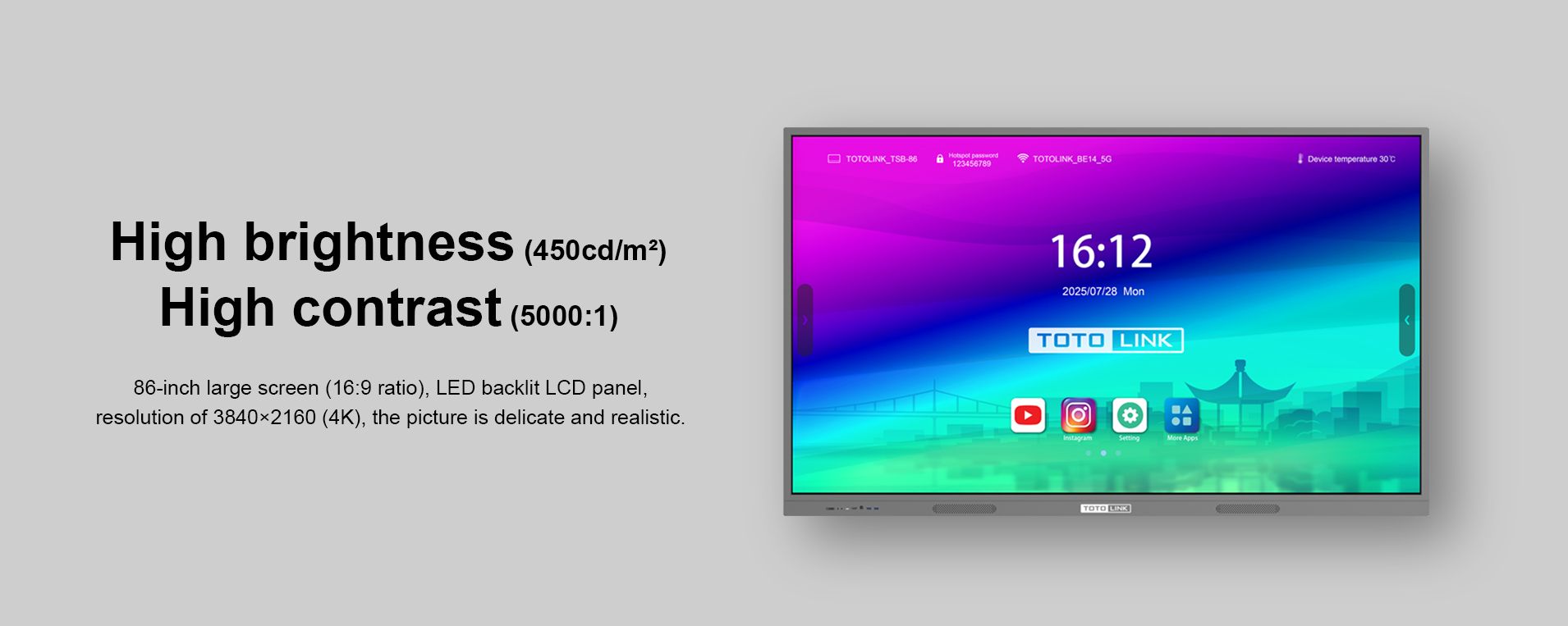

Display   Size86   inches (16:9)
Panel   typeLED   LCD display screen
Screen   display size1895   * 1065.9mm [H x V]
Physical   resolution3840（H）×2160（V）
Display   Color10bit, 1.07B
Refresh   rate4K-60HZ
Brightness≤450cd/m2
Contrast   ratio5000：1

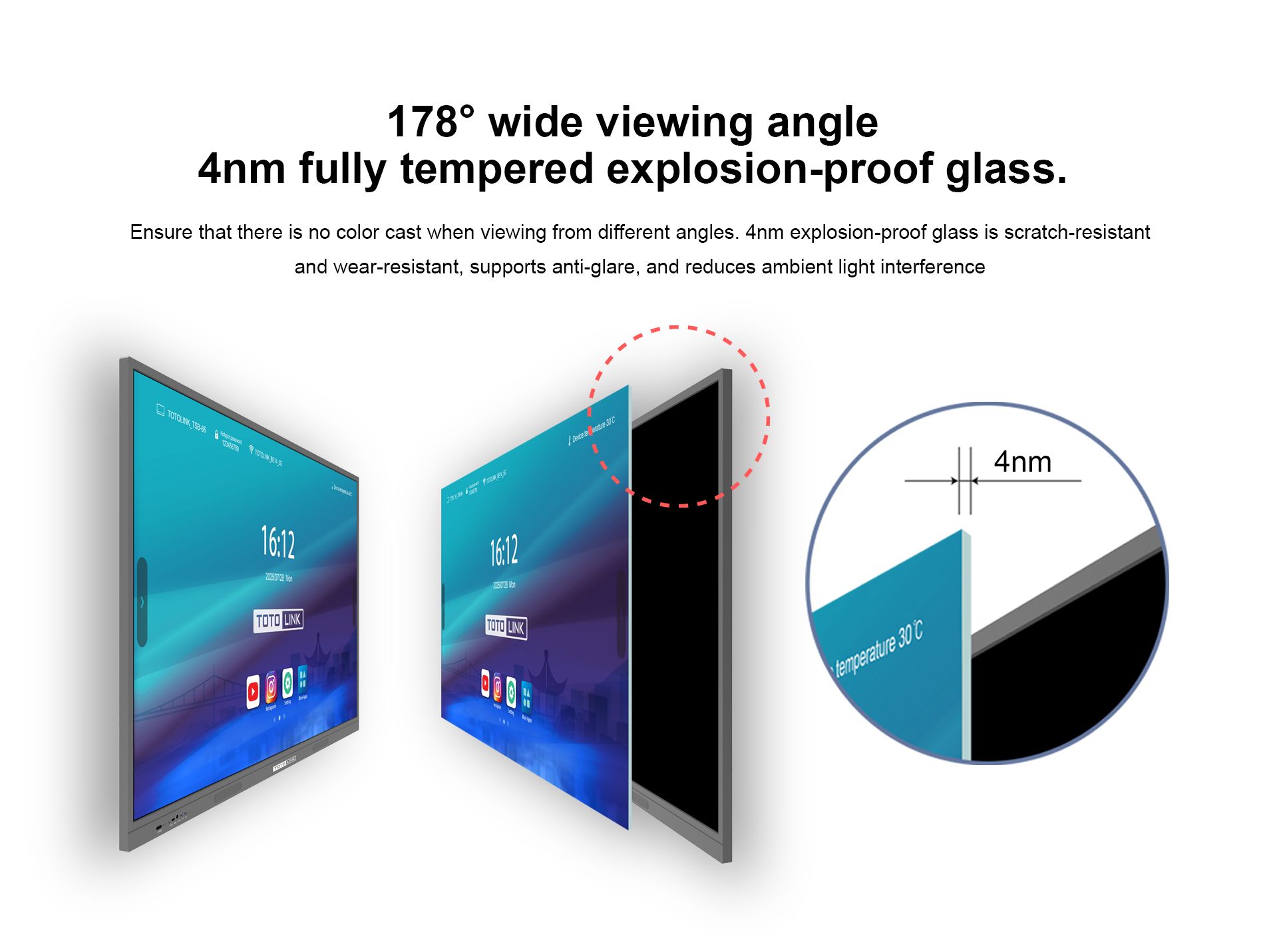

Perspective   (degree)178°
Display   screen protection4mm fully tempered high explosion-proof anti glare glass
Backlight   lifespan50000 hours

Touch Parameters

SpecificationDetails
Touch embedding methodBuilt   in integrated, non external, front detachable design

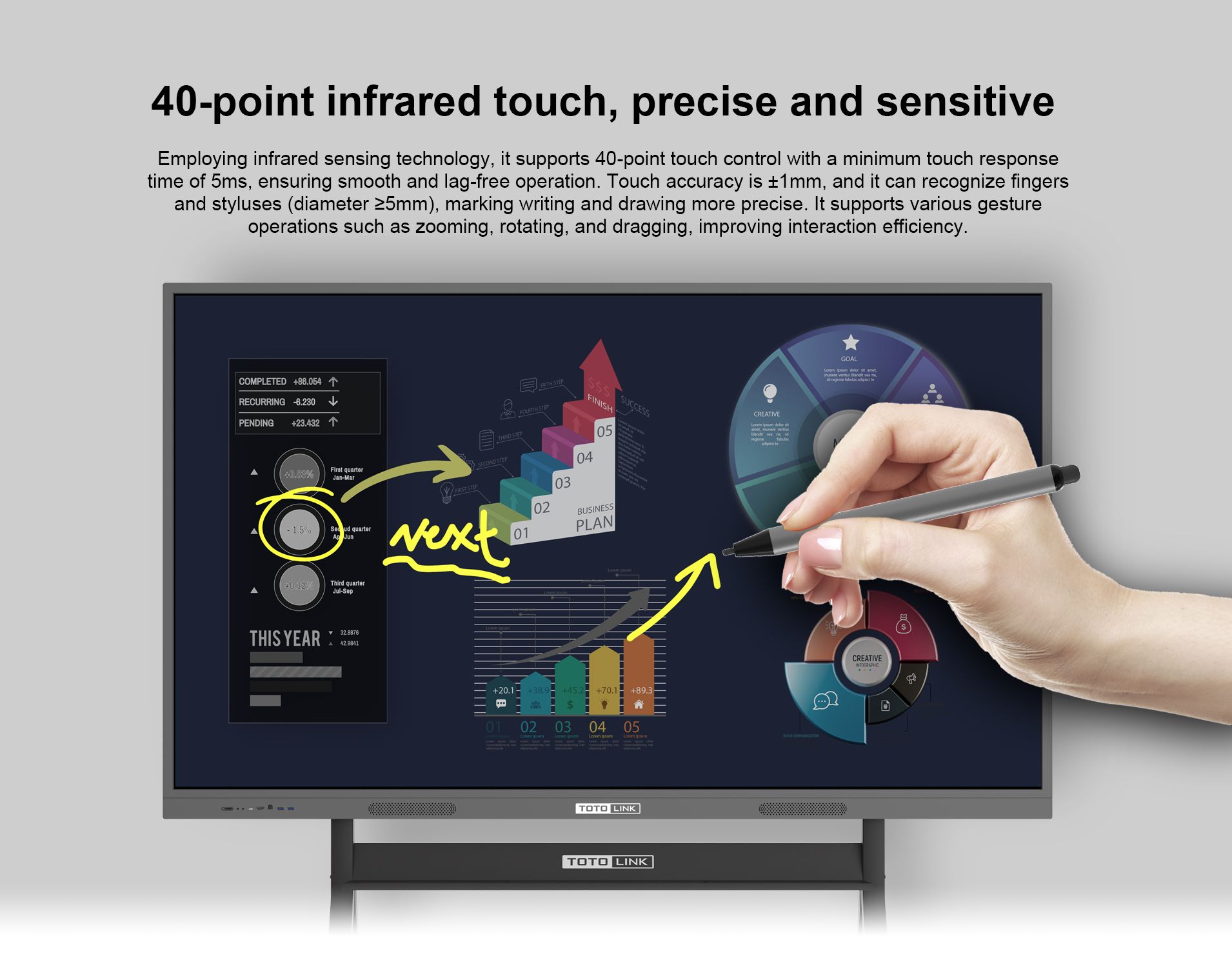

Touch sensing technologyInfrared   induction recognition touch technology (40 points)
Writing styleFingers, touch pens or other non transparent
objects with a diameter
of
not less than   5mm (multi-point 8mm)
Cursor speed120   points/s
positioning accuracyMore   than 90% of the touch area is ± 1mm
communication interfaceB-type   USB male connecto
Touch resolution32767*32767
Touch frequencyTheoretical   Infinite Times
Computer responseAutomatic   recognition by the system; ≤15ms
DriverDrive   free
Touch functionSupport 40 P
oint
computer   touch operation
Support image enlargement,   reduction, and rotation

Whole Machine Characteristics

SpecificationDetails
Shell   and appearanceAluminum   profile frame zero sticker design, front buttons, front ports, front speakers
colorsteel gray
outline   dimension1951.3*1159.5*89.5mm
Package   size2068*245*1288mm
Net   weight72KG
Gross   weight83KG
Maximum   power consumption rate≤285W
Standby   power≤0.5W
Installation   methodStandard wall bracket (mobile   bracket optional)

Working environment

SpecificationDetails
W orkplaceIndoo
O peration temperature0°C - 40°C
Working humidity10% -90% non condensing
Storage temperature-20°C - 60°C
Storage humidity10% -90% non condensing

Documentation and downloads will be available soon.
