TSB-75

TSB-75

Available in: APAC | EMEA | Americas

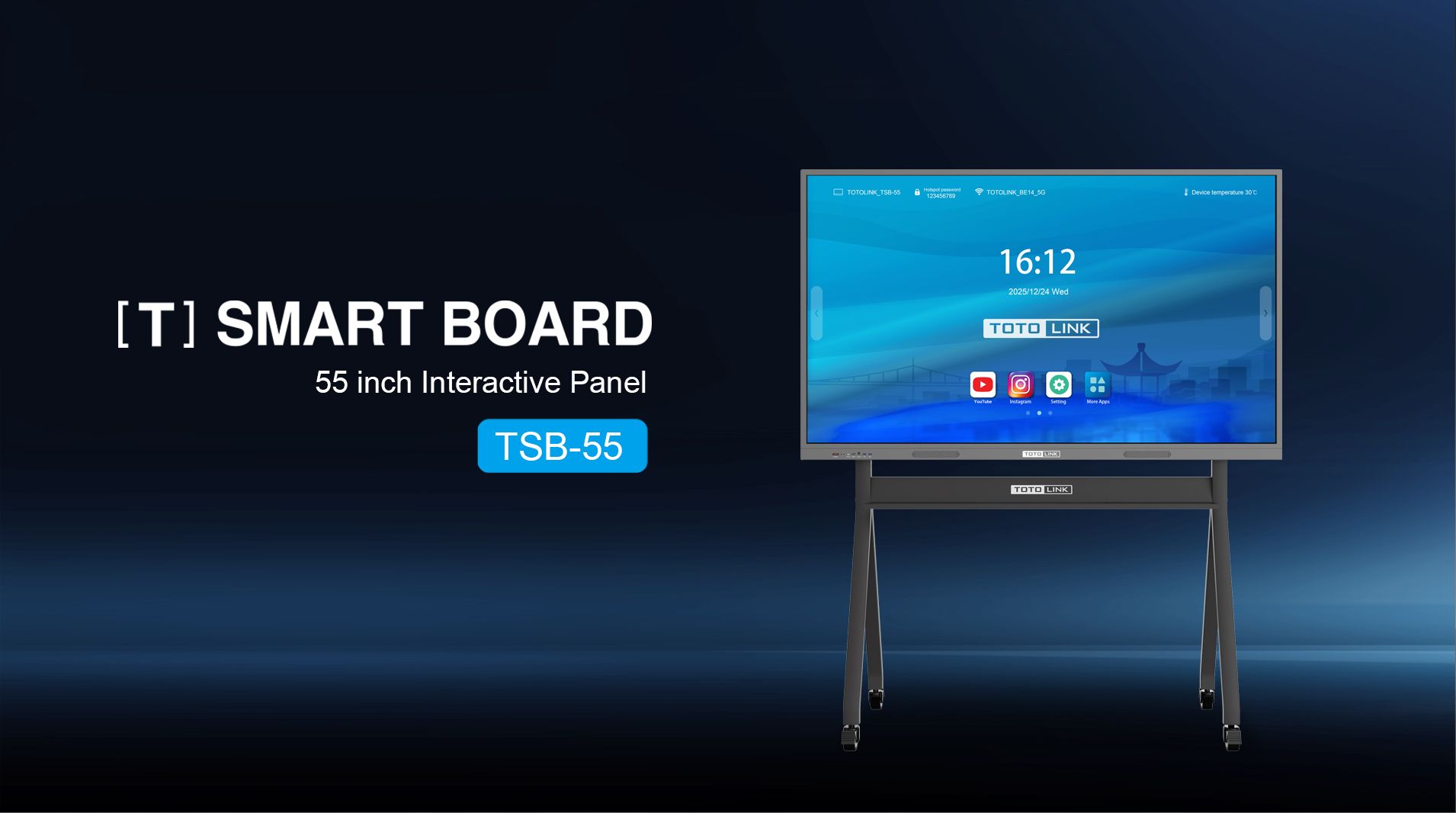

TSB-55 is a 55-inch high-definition display, multi-touch, and multimedia functions. It is suitable for a variety of scenarios such as education, conferences, and commercial displays. Equipped with Android 14.0 system, a powerful octa-core processor and high-speed memory, it ensures a smooth operating experience. It adopts fully tempered explosion-proof glass and anti-glare design, taking into account durability and visual comfort, and is an ideal choice for modern smart office and teaching.











Features

  • Support full channel switching touch, touch menu, touch menu operation, touch volume adjustment, touch brightness  adjustment
  • Support one touch energy-saving
  • Support individual listening [i.e. the screen is not lit while the all-in-one device is in working mode, and audio and  video can be played normally]
  • Support wireless screen mirroring on mobile phones
  • Support one click screen recording function
  • Support touch menu one click shutdown
  • Support USB 3.0 socket for front facing computers
  • Support transferring external devices to use the machine's built-in touch box function
  • Support network following function
  • Support inserting signal sources, videos, browsers, file management, images into whiteboards, PPT.
  • Supports interactive teaching with flip-style pages, including effective tools and special effects.
  • Language: Supports multiple languages, including Vietnamese and English.

Interactive F unctional Parameters

SpecificationDetails
CPUOcta-core A55
GPUQuad-Core MaliG52 MC2_600MHz
RAM/ROM8GByte/ 128GByte
Wireless2.4GHz WIFI+5GHz WIFI+BT5.0
Horn specifications15W/8 ohms x 2 speakers

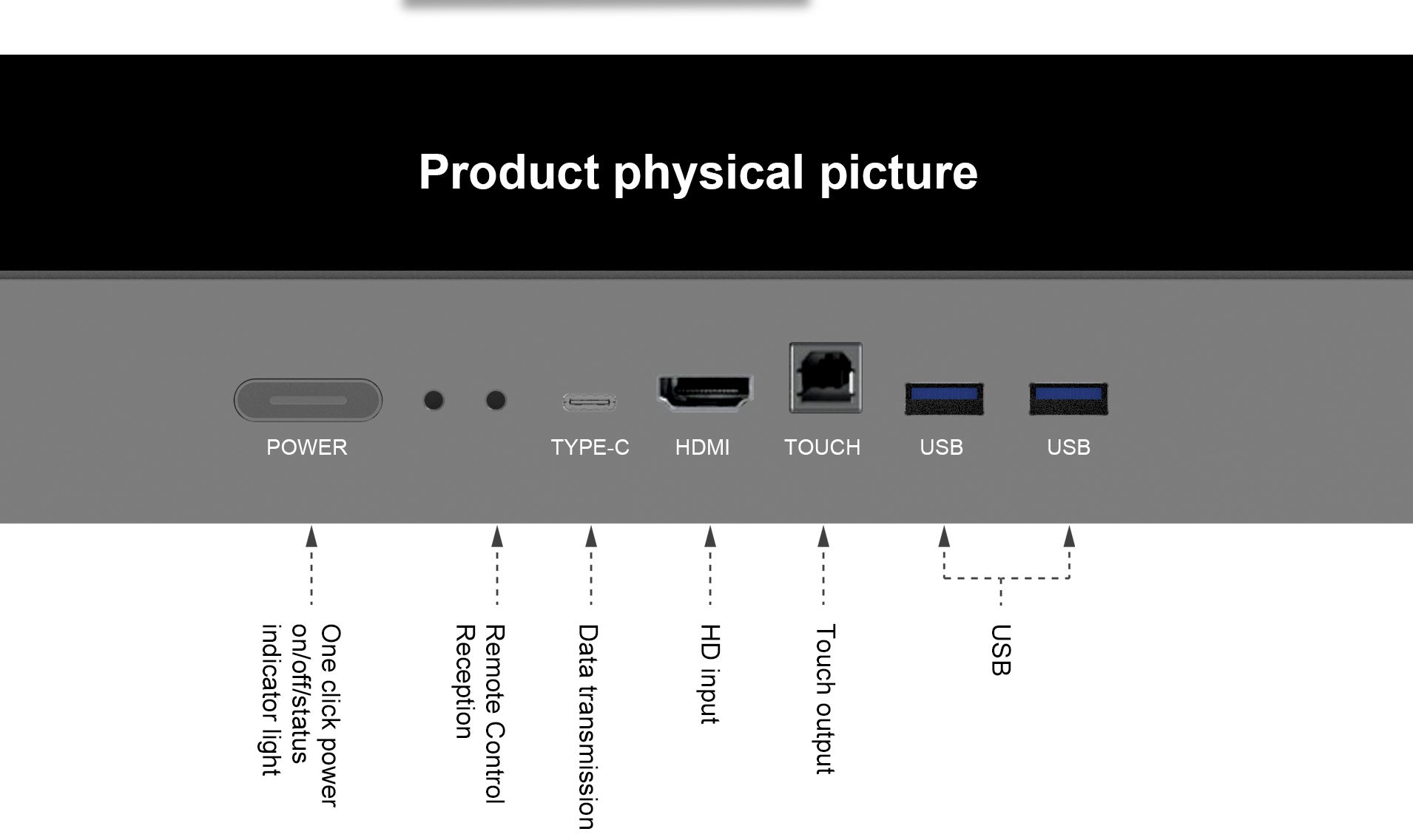

Front   terminal inputFront interface: USB * 2 (full channel) type-c*1
、
HDMI IN*1
、
TOUCH*1
Front one button: power on/off

Display Parameters

SpecificationDetails

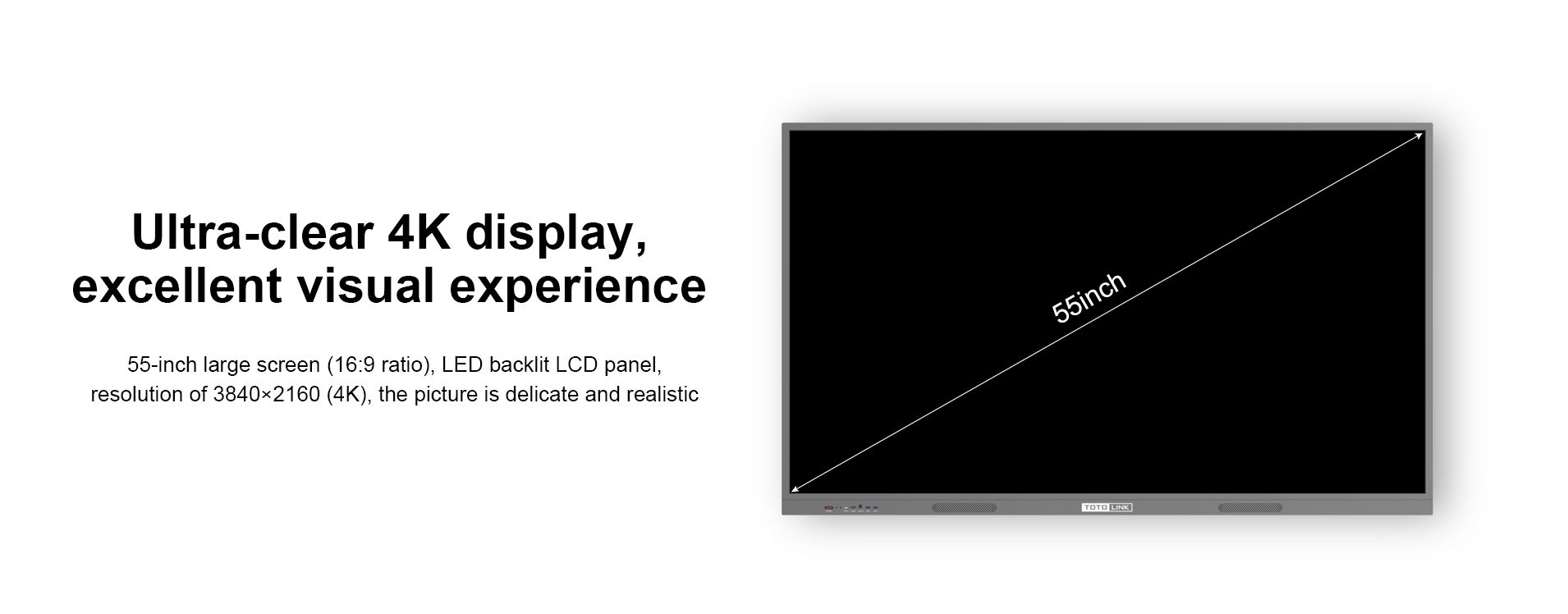

Display   Size55 inches (16:9)
Panel   typeLED LCD display screen
Screen   display size1211.6 x 682.5mm【 H x V 】
Physical   resolution3840（ H ）× 2160（ v ）
Display   Color10bit, 1.07B
Refresh   rate4K-60Hz
Brightness≤400cd/m2
Contrast   ratio5000：1

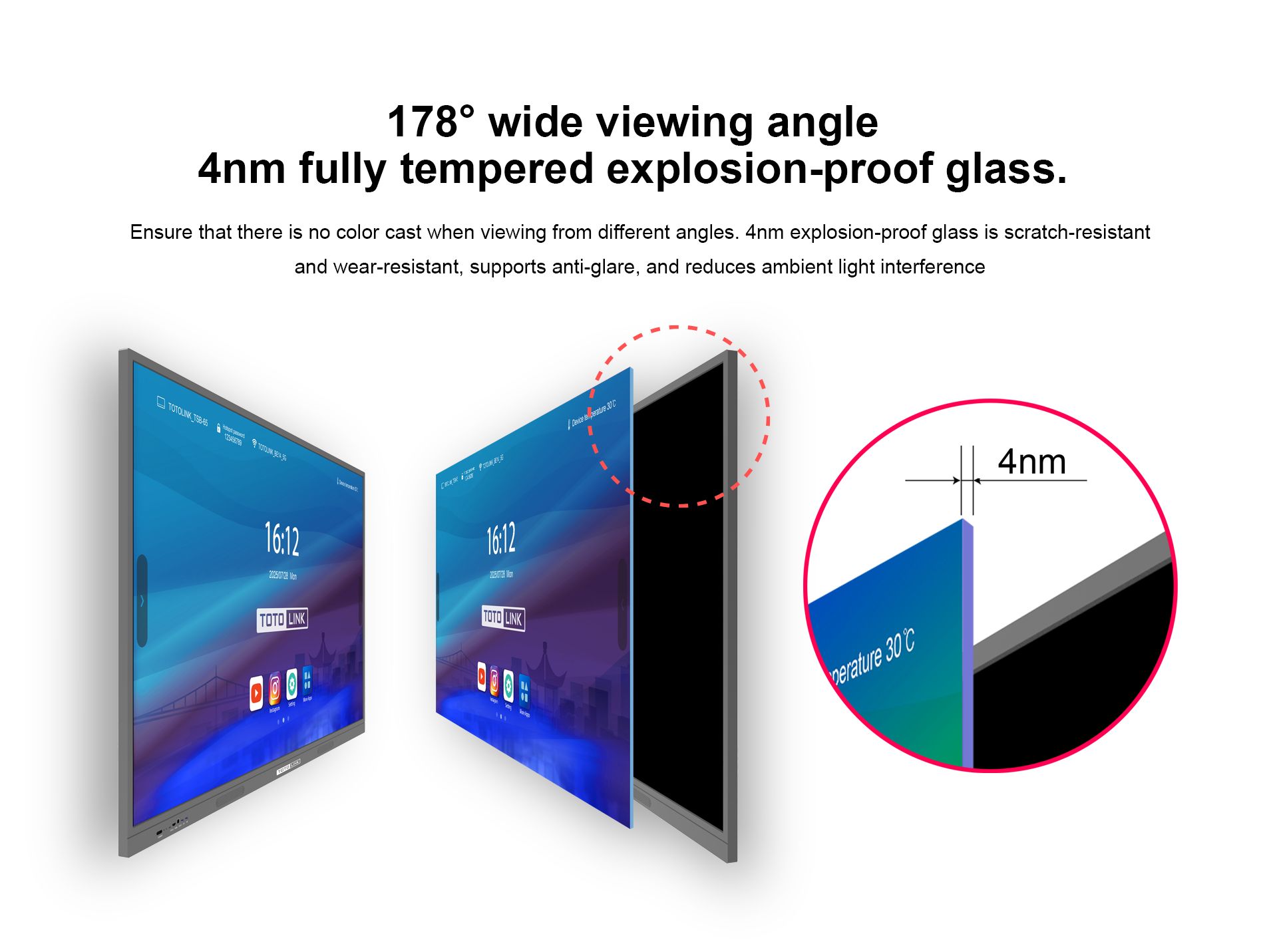

Perspective   (degree)178°
Display   screen protection4mm fully tempered high explosion-proof anti glare glass
Backlight   lifespan50000 hours

Touch Parameters

SpecificationDetails
Touch embedding methodBuilt in integrated, non external, front detachable design
Touch sensing technologyInfrared induction recognition touch technology (40 points)
Writing styleFingers, touch pens or other non transparent objects with a diameter of not
less than 5mm (multi-point 8mm)
Cursor speed120 points/s
positioning accuracyMore than 90% of the touch area is ± 2mm
communication interfaceB-type USB male connecto
Touch resolution32767*32767
Touch frequencyTheoretical Infinite Times
Computer responseAutomatic recognition by the system; ≤15ms
DriverDrive free
Touch functionSupport 40 Point computer touch operation
Support image enlargement, reduction, and rotation

Whole Machine Characteristics

SpecificationDetails
Shell   and appearanceAluminum profile frame zero sticker design, front buttons, front ports, front speakers
colorsteel gray
outline   dimension1258 *770.5*81.3mm
Package   size1378*190*904mm
Net   weight27KG
Gross   weight32KG
Maximum   power consumption rate≤110W
Standby   power≤0.5W

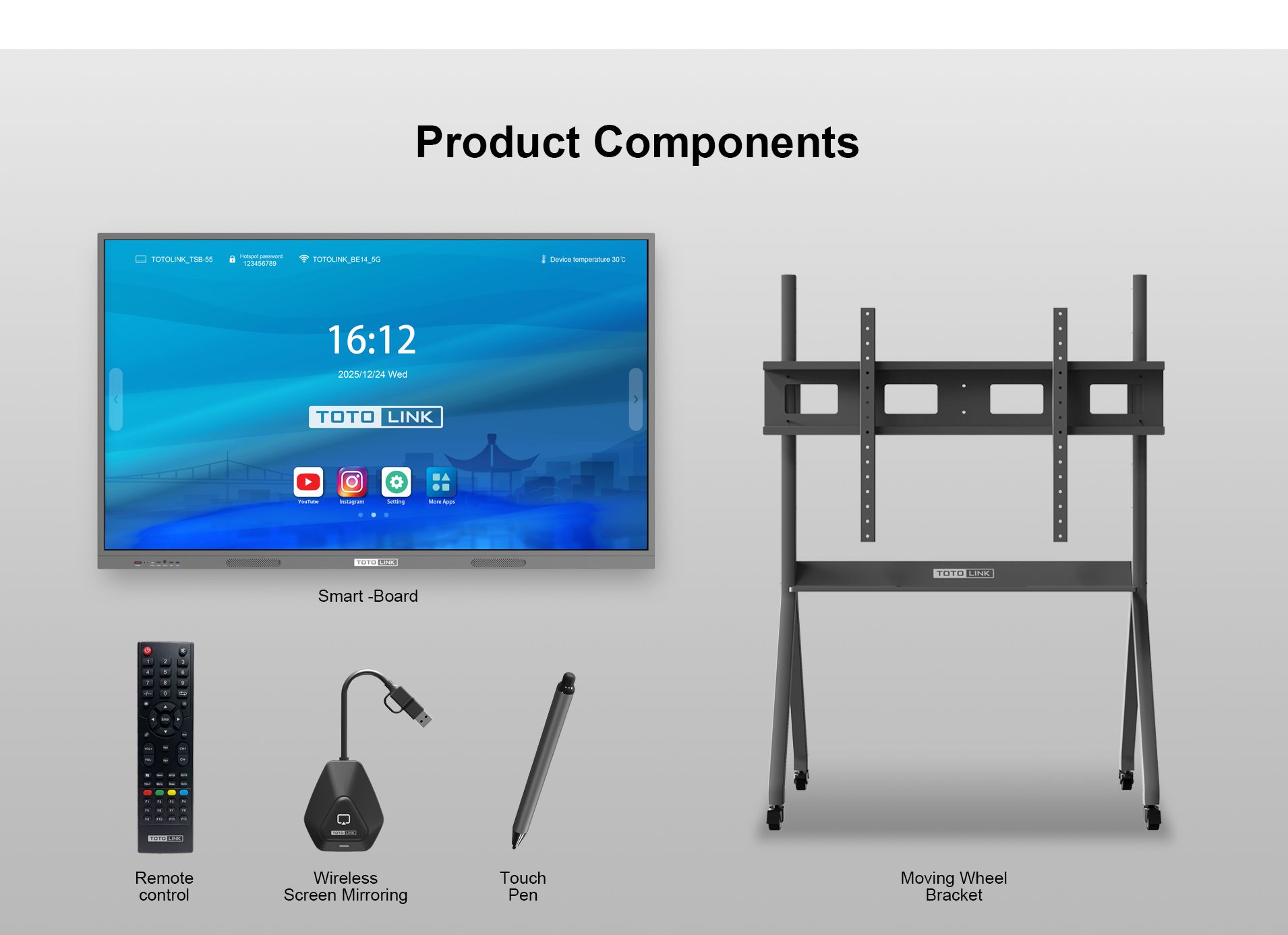

Installation   methodStandard wall bracket (mobile bracket optional)

Working environment

SpecificationDetails
W orkplaceIndoo
O peration temperature0°C - 40°C
Working humidity10% -90% non condensing
Storage temperature-20°C - 60°C
Storage humidity10% -90% non condensing

Documentation and downloads will be available soon.
