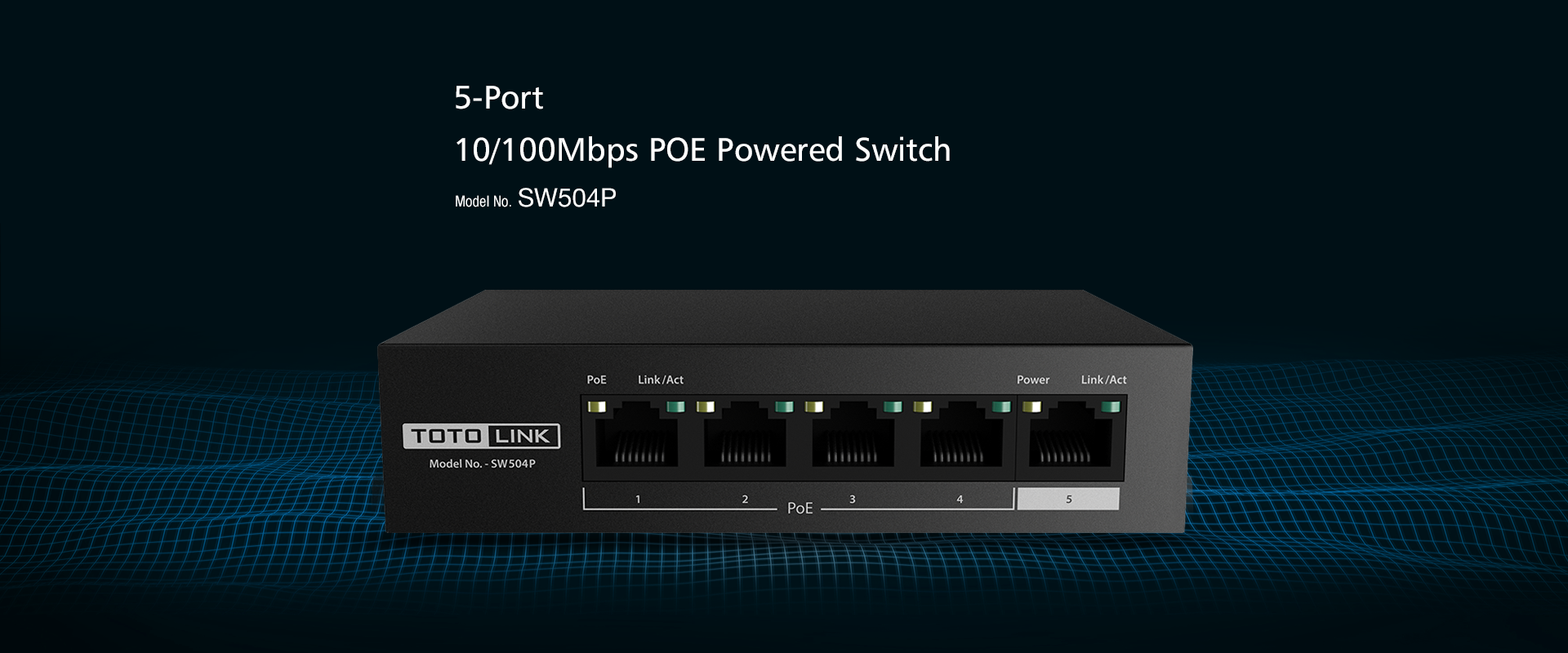

The SW504P is a 5-port 100Mbps POE powered switch.

1-4 ports can detect connected devices automatically

and deliver power &data to all IEEE802.3af/at compliant

POE powered deviceds through one Ethernet cable.

In addition, the SW504P supports extended mode and

can support long-distance transmission up to 250 meters

after it is turned on.

It is ideal for outdoor surveillance and small AP

network deployments.

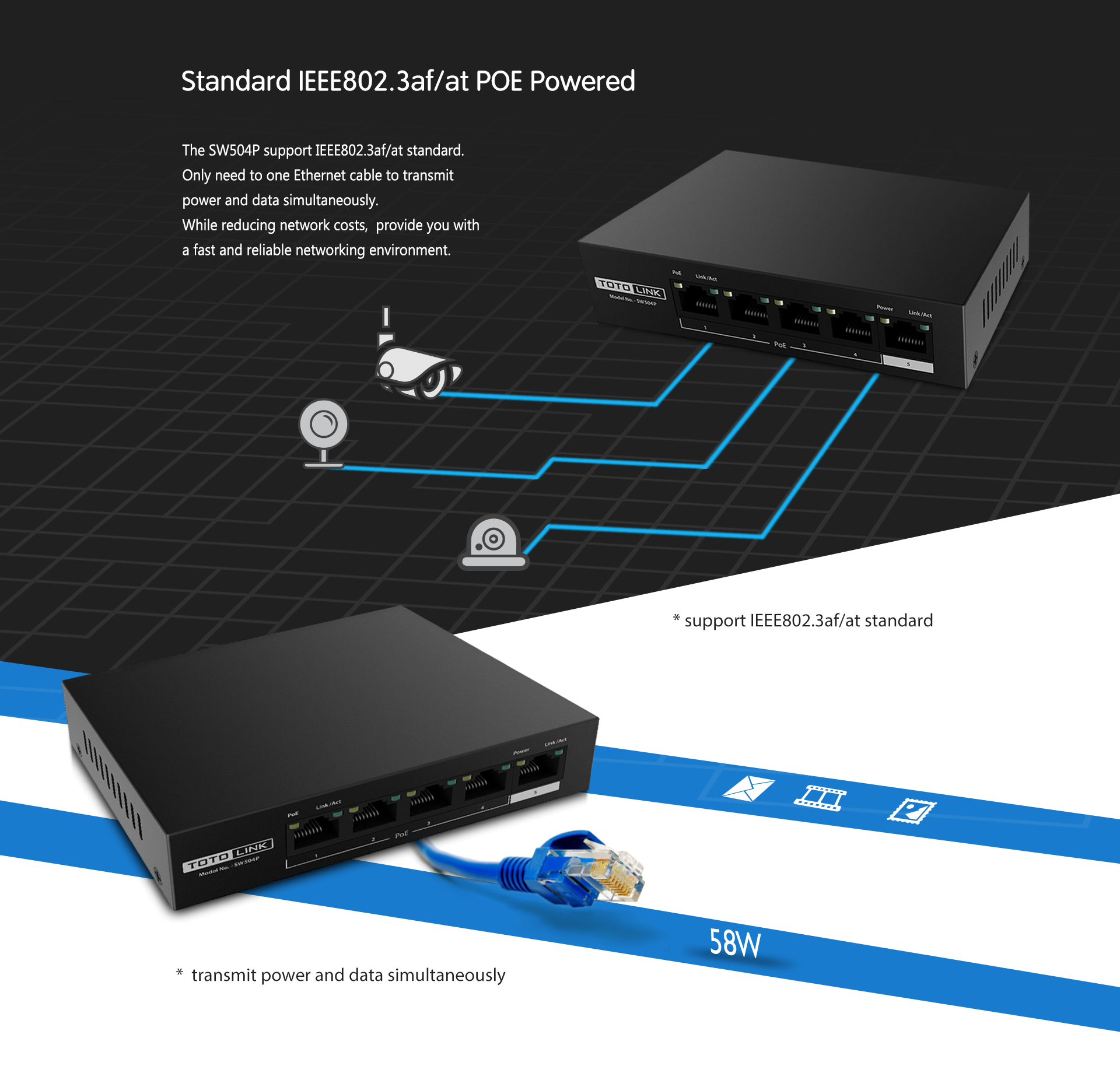

5 10/100Mbps  Ethernet ports, 1-4 ports IEEE 802.3af/at standard POE.

Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

Mini iron box design supports desktop placement or wall mount.

1K entry MAC address table and automatic address learning.

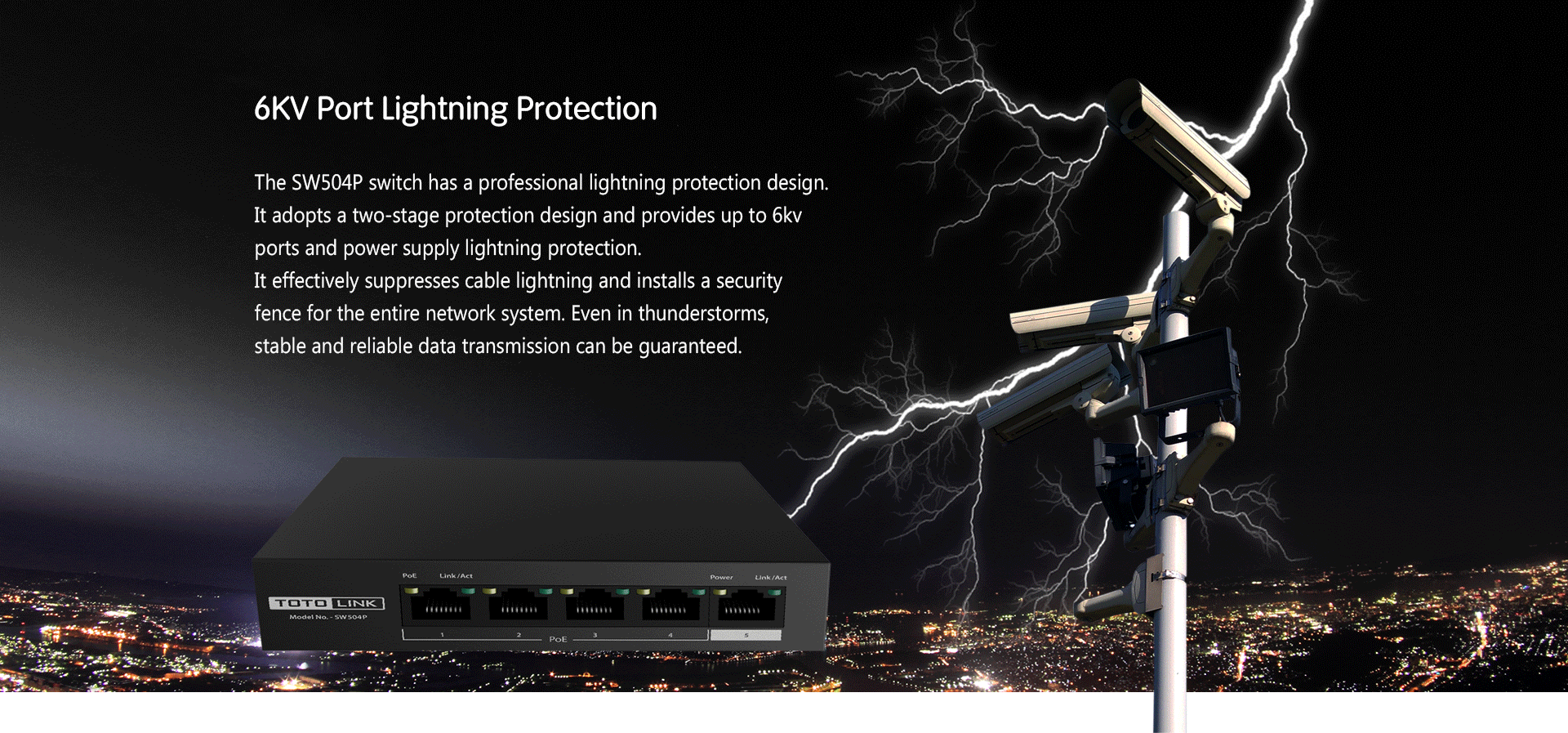

6KV Port Lightning Protection.

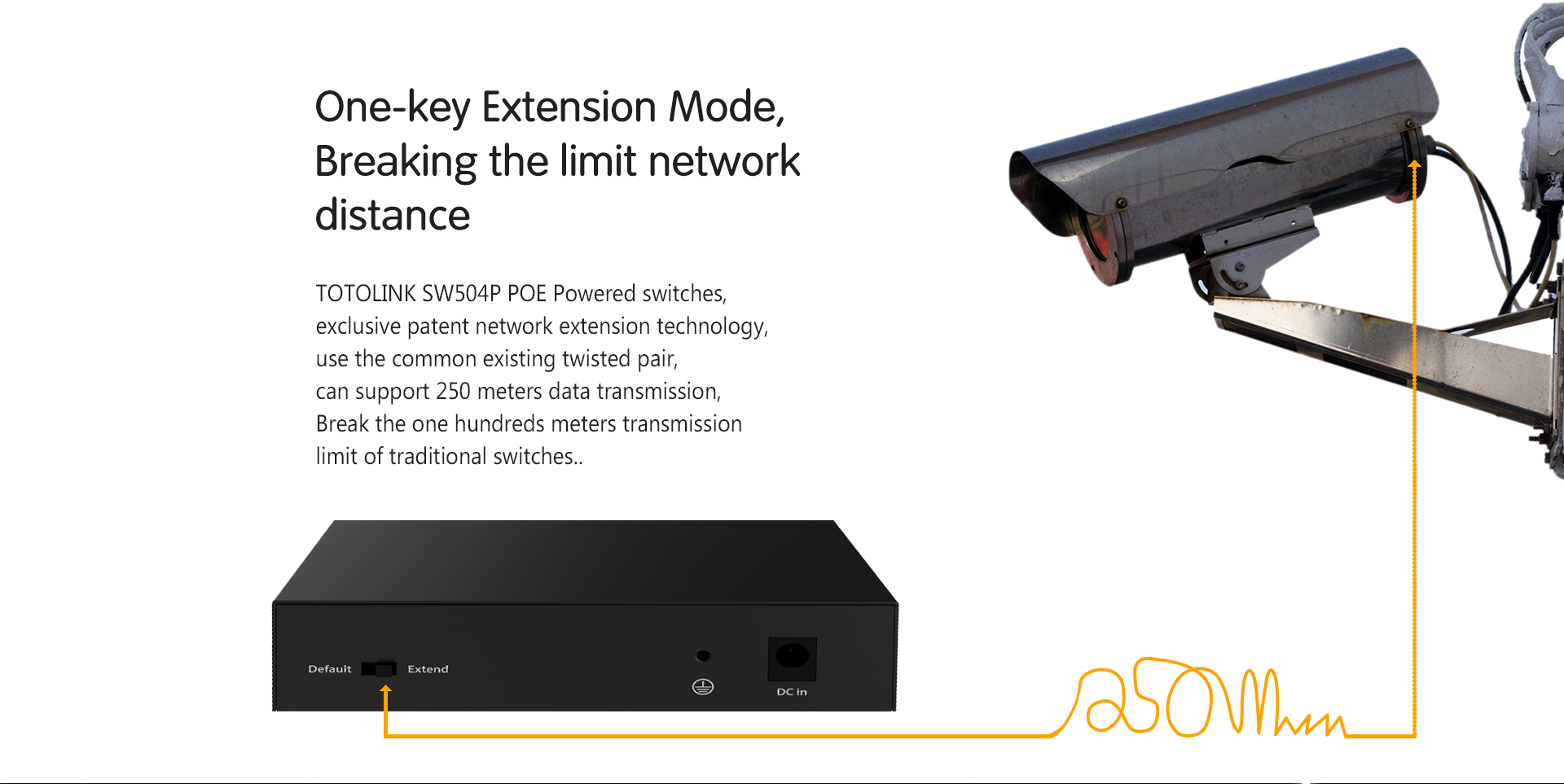

One-key Extension Mode, Maximum support 250 meters transmission distance.
