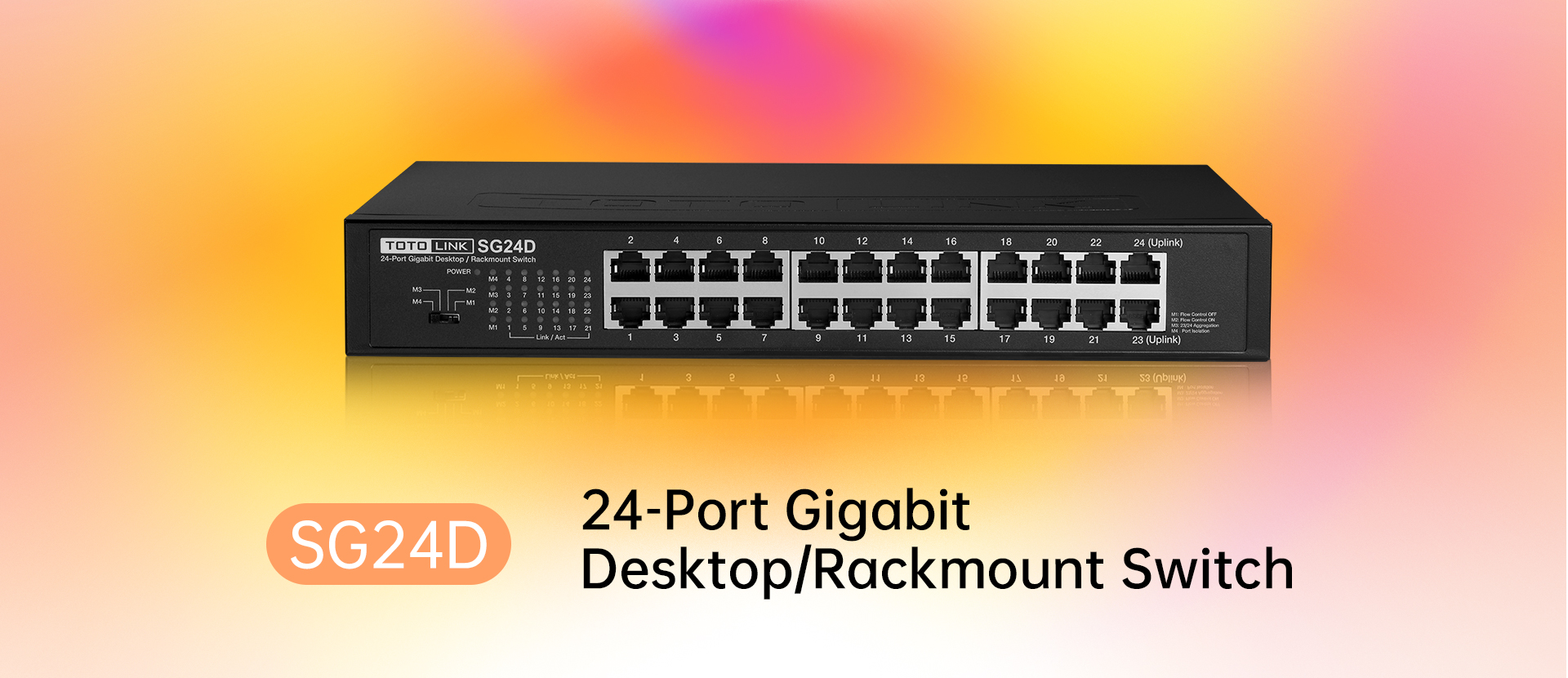

SG24D is a Gigabit Desktop/Rackmount Switch that specially designed for applications like diskless system, network-clone etc.

With 24 Gigabit RJ-45 ports, SG24D allows large file transferring at high speed.

All ports supports wire-speed forwarding, auto MDI/MDIX and Auto Negotiation, no need to worry about cable type, simply plug and play.

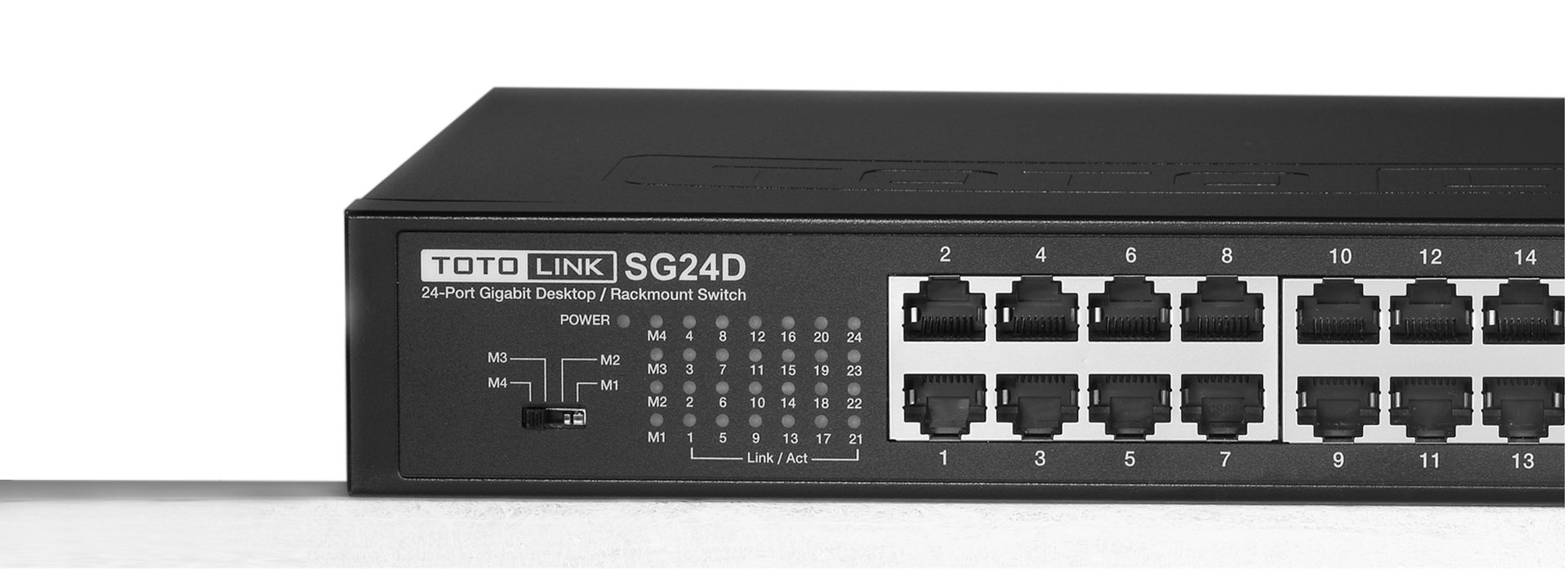

Moreover, one slide switch is provided for four different working modes switching, making SG24D a high performance solution for your business network.

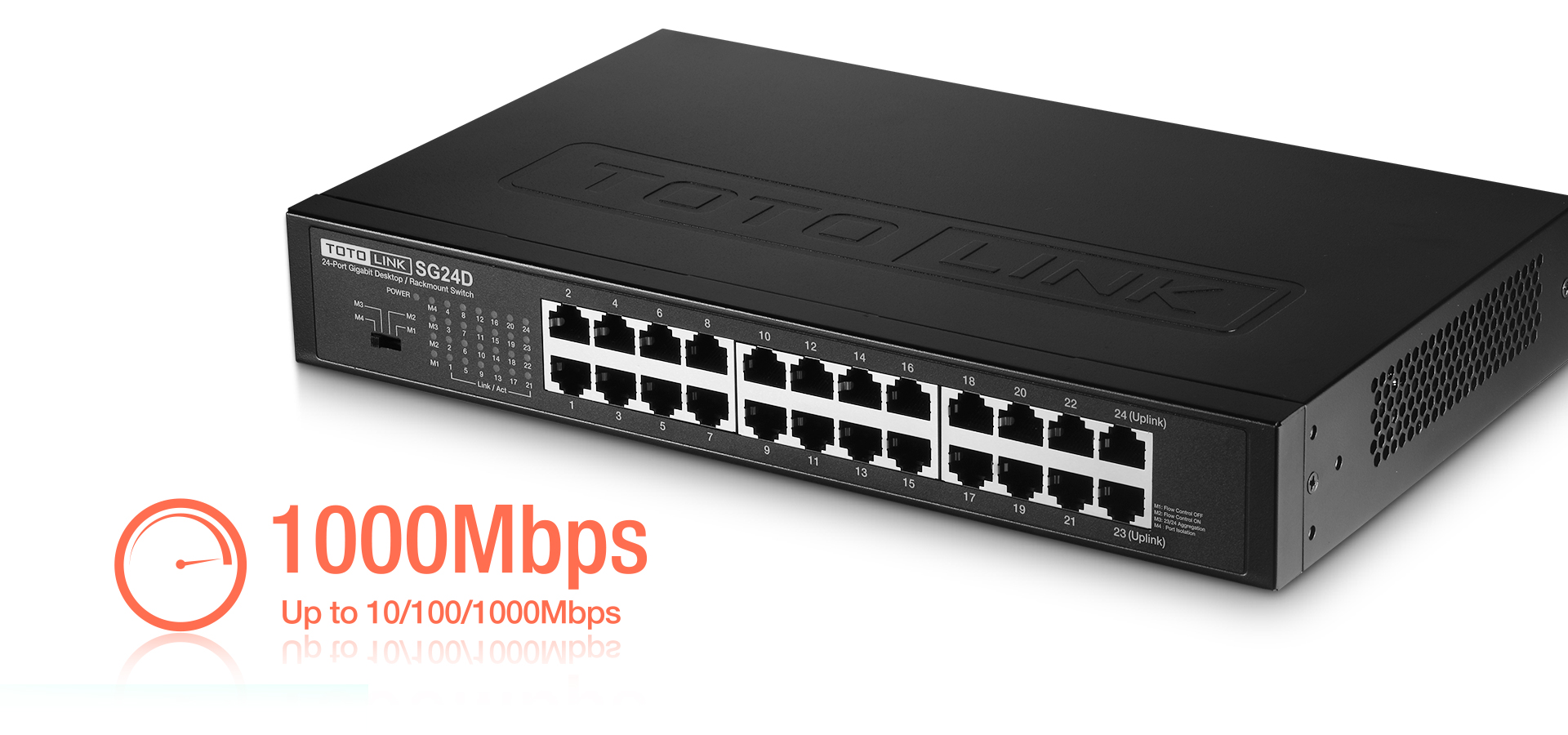

24 10/100/1000Mbps auto-negotiated RJ45 ports.

Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

48Gbps Switching Capacity.

Auto-MDI/MDIX eliminates the need for crossover cables.

Store and forward Switching scheme.

MTBF≥5 years.

Supports Jumbo Frame (10KByte).

Supports IGMP Snooping.

Desktop and Rack-mountable design.
